Untethered Control: A Magnetic Leap in Robotic Manipulation

by

Author: Denis Avetisyan

Researchers have developed a novel system that uses magnetic levitation and deep reinforcement learning to enable stable, non-contact manipulation of objects in three-dimensional space.

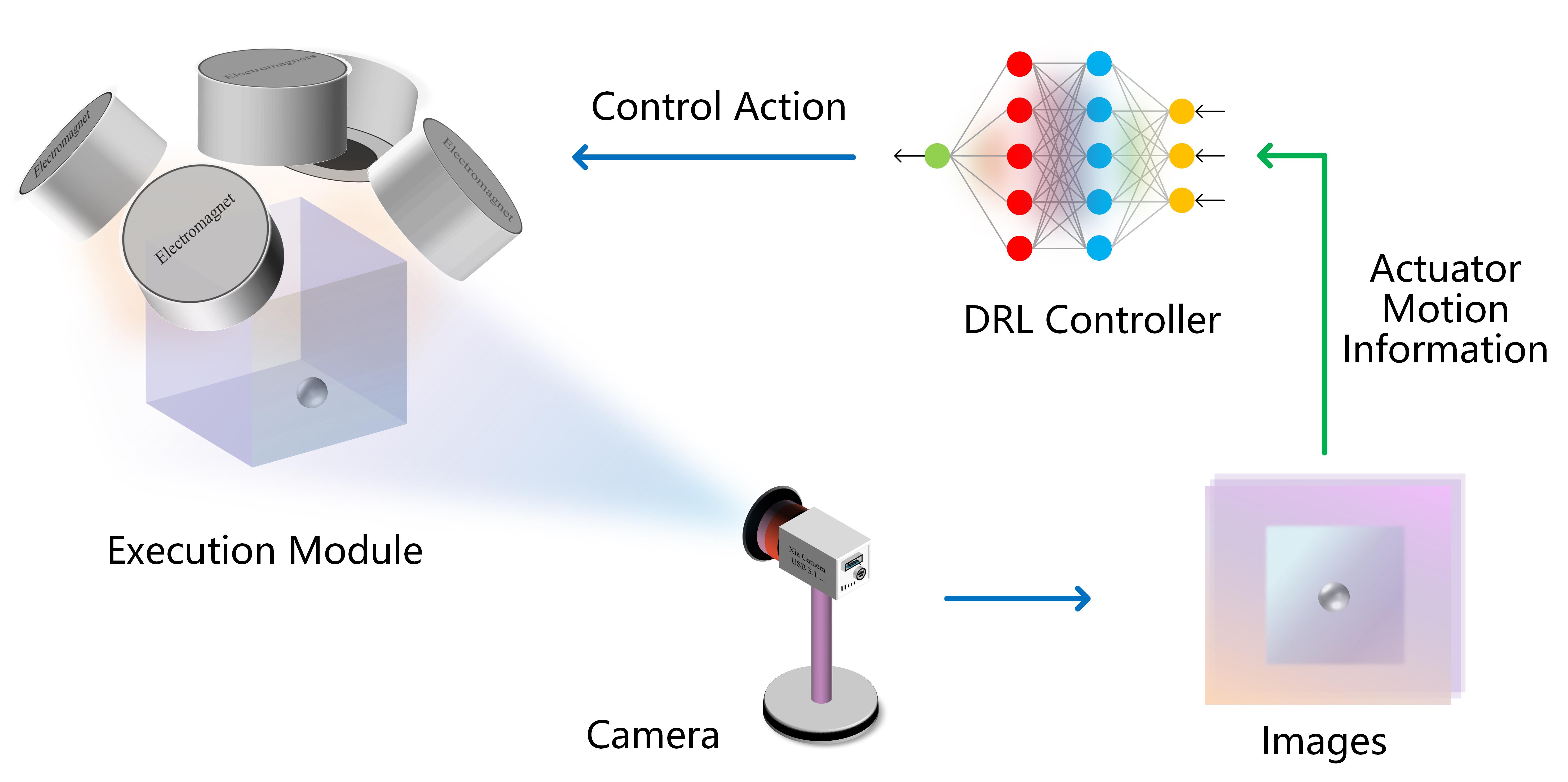

The Maglev-Pentabot integrates visual perception with a deep reinforcement learning controller to manipulate actuators via electromagnetic forces, enabling the system to infer and execute control actions based on observed motion-a synthesis of sensing, computation, and physical execution.
The Maglev-Pentabot integrates visual perception with a deep reinforcement learning controller to manipulate actuators via electromagnetic forces, enabling the system to infer and execute control actions based on observed motion-a synthesis of sensing, computation, and physical execution.

This work details the Maglev-Pentabot, a robotic platform demonstrating macroscopic control through deep reinforcement learning-based magnetic levitation.

While non-contact manipulation holds transformative potential across industries, current techniques are largely confined to microscopic scales and milligram-level objects. This limitation is addressed in ‘Maglev-Pentabot: Magnetic Levitation System for Non-Contact Manipulation using Deep Reinforcement Learning’, which introduces a novel magnetic levitation system capable of gram-scale, macroscopic object control. By leveraging deep reinforcement learning, the Maglev-Pentabot demonstrates stable levitation and flexible manipulation, generalizing to unseen transport tasks through optimized electromagnet arrangements and an action remapping technique. Could this approach pave the way for scalable, robust robotic systems in industrial settings requiring precise, non-contact handling of heavier payloads?

Beyond Contact: The Promise of Precision Manipulation

Conventional manipulation techniques, fundamentally reliant on physical contact, inherently introduce a suite of practical limitations. Direct interaction between a manipulating tool and an object frequently results in unwanted interference, potentially disrupting delicate processes or altering the object’s properties. Moreover, the forces exerted during contact carry an inherent risk of damage, particularly when dealing with fragile or sensitive materials. This is especially problematic in fields like micro-assembly, biological handling, or the processing of hazardous substances, where even minor impacts can have significant consequences. Consequently, researchers are increasingly exploring alternatives that minimize or eliminate physical contact, seeking to enhance both the precision and safety of manipulation tasks and expand their applicability to a wider range of environments and materials.

The limitations inherent in traditional manipulation – the need for physical contact – are increasingly overcome by the advent of non-contact methods. This emerging field promises a paradigm shift in how objects are handled, offering substantial gains in precision by eliminating mechanical backlash and material deformation. Crucially, safety is enhanced as the risk of damage to both the manipulated object and the surrounding environment is significantly reduced. Beyond controlled laboratory settings, non-contact manipulation is particularly valuable in dynamic and unpredictable environments – such as those encountered in surgical procedures, hazardous material handling, or space exploration – where adaptability and remote operation are paramount. The potential extends to micro-assembly, where delicate components require exceptionally gentle handling, and large-scale applications like construction, where precise positioning of heavy materials is essential.

Magnetic levitation represents a pivotal advancement in non-contact manipulation, offering a means to position and control objects without physical interaction. This technique utilizes magnetic fields to counteract gravitational forces, enabling stable suspension and precise movement of target objects. Unlike traditional robotic grippers or suction cups, magnetic levitation eliminates the risk of surface damage or contamination, making it ideal for handling delicate materials in industries like pharmaceuticals and semiconductor manufacturing. Furthermore, the versatility of electromagnet designs allows for complex control schemes, including multi-axis positioning and dynamic adjustments to maintain stability even in challenging environments. This robust and adaptable control mechanism opens doors to automation in previously inaccessible areas, promising increased efficiency and safety across a wide range of applications – from micro-assembly to large-scale material handling.

Maintaining stable and precise control through magnetic levitation is a complex undertaking, especially when dealing with real-world dynamics. Unlike static systems, objects subject to external disturbances – such as sudden movements, variable loads, or even air currents – require sophisticated control algorithms to counteract these forces and prevent unwanted drift or instability. Current research focuses on developing adaptive control systems that can learn and compensate for unpredictable environmental factors. These systems often employ feedback loops, utilizing sensors to monitor the object’s position and orientation, and then adjusting the electromagnetic fields accordingly. However, the inherent delay in sensing and actuation, combined with the nonlinear nature of magnetic fields, introduces significant challenges in achieving high-bandwidth, robust control – a key requirement for applications demanding rapid and accurate manipulation.

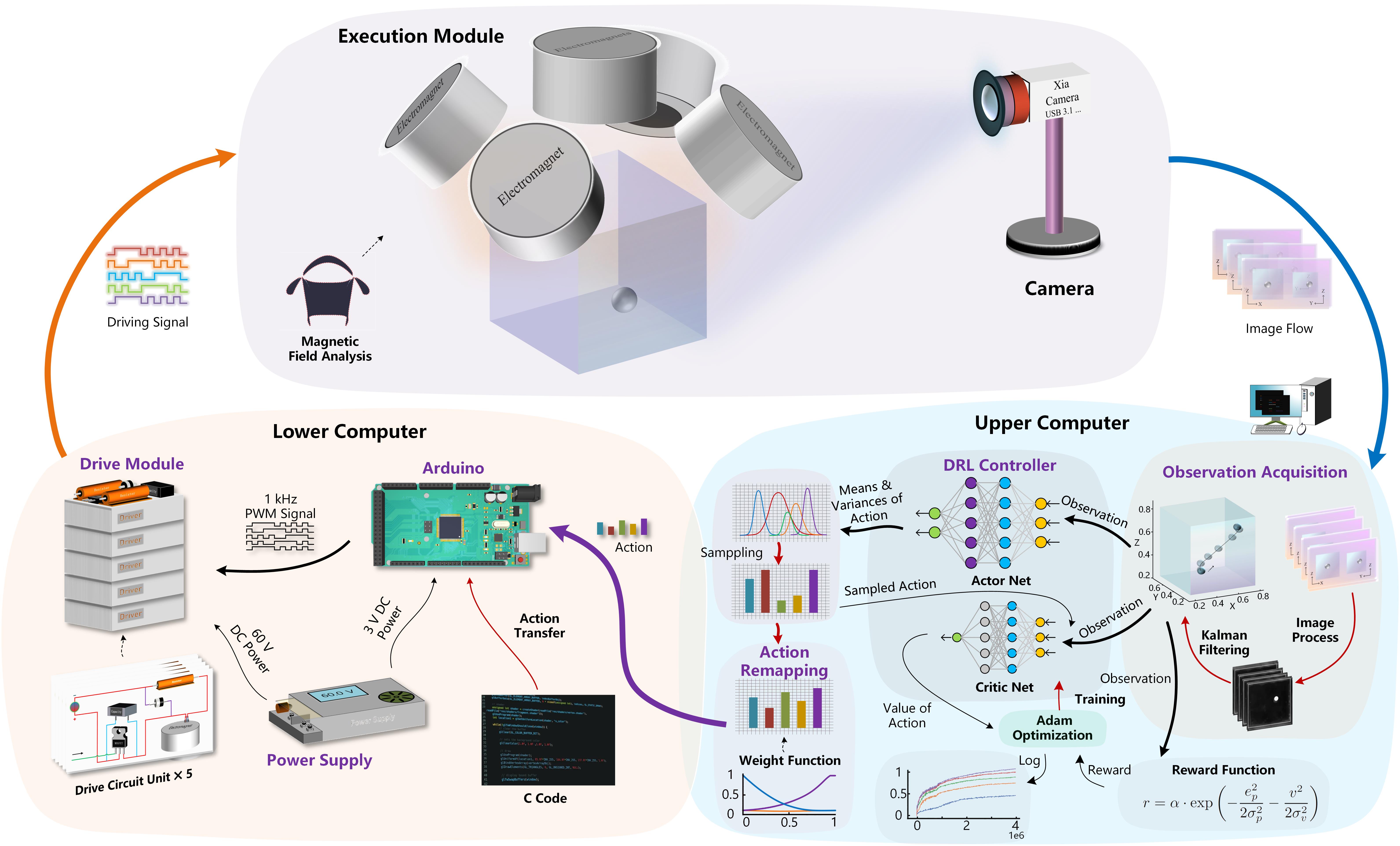

The Maglev-Pentabot system uses computer vision to track a magnetized ball's motion, feeding this data to a deep reinforcement learning controller that adjusts electromagnet currents via PWM signals to achieve precise movement.
The Maglev-Pentabot system uses computer vision to track a magnetized ball’s motion, feeding this data to a deep reinforcement learning controller that adjusts electromagnet currents via PWM signals to achieve precise movement.

Introducing Maglev-Pentabot: A Dynamic Stabilization System

Maglev-Pentabot utilizes magnetic levitation to manipulate objects without physical contact, achieved through a control architecture integrating real-time feedback and precise electromagnetic field adjustments. This system employs electromagnets to generate forces countering gravitational and external disturbances, maintaining object position and orientation in three-dimensional space. The control architecture incorporates sensors to monitor object pose and velocity, feeding this data into a control algorithm that dynamically adjusts the current supplied to each electromagnet. This allows for stable levitation and precise manipulation, enabling tasks requiring contactless handling and positioning. The system’s ability to operate without physical contact minimizes the risk of damage to delicate objects and reduces contamination concerns in sensitive environments.

Dynamic stability is a critical factor in the operational success of the Maglev-Pentabot system due to the inherent instability of levitated objects. Without active control, even minor disturbances, particularly gravitational forces acting on both the levitated object and the system itself, will induce motion and ultimately result in contact. The system compensates for these forces using a closed-loop control architecture that continuously monitors the object’s position and adjusts the electromagnetic fields to maintain stable levitation. Precise modeling of gravitational effects, alongside other external disturbances such as air currents and vibrations, is therefore essential for designing a robust and reliable control algorithm capable of maintaining stability across the entire controllable volume.

Optimizing the arrangement of electromagnets is critical for Maglev-Pentabot’s operational capabilities. The spatial configuration directly impacts the volume of space within which stable levitation is achievable, and consequently, the size of objects that can be manipulated. Specifically, simulations using the Finite Difference Method indicate that an optimized arrangement yields a controllable volume of $27.3 \text{ m}^3$. Robust levitation, defined as maintaining stability against external disturbances, is also heavily dependent on electromagnet placement; a strategically designed arrangement distributes magnetic forces to counteract gravitational and other forces acting on the levitated object, enabling manipulation of objects with a mass of up to $3.8 \times 10^5$ kg with appropriate hardware specifications.

The Maglev-Pentabot system’s electromagnet arrangement was evaluated using the Finite Difference Method, a numerical technique for solving differential equations. Simulations assessed multiple configurations to determine their impact on both controllable volume and maximum manipulable mass. Results of these analyses predict a controllable workspace of $27.3 \ m^3$ within the system. Furthermore, with optimized hardware implementation, the system is projected to be capable of manipulating objects with a mass of up to $3.8 \times 10^5 \ kg$. These figures were derived from modeling the electromagnetic fields and gravitational forces acting on potential objects within the defined workspace.

The Maglev-Pentabot prototype integrates a camera and execution module with lower-level computing to enable magnetically levitated locomotion.
The Maglev-Pentabot prototype integrates a camera and execution module with lower-level computing to enable magnetically levitated locomotion.

Deep Reinforcement Learning for Intelligent and Adaptive Control

A controller was trained using Deep Reinforcement Learning (DRL) to achieve autonomous stabilization and manipulation of objects within the Maglev-Pentabot system. This involved developing an agent capable of interacting with the physical system and learning optimal control policies through trial and error. The DRL approach enabled the system to learn complex motor skills without explicit programming, allowing it to adapt to the dynamic characteristics of the Maglev-Pentabot and maintain stable control over levitated objects. The controller was designed to manage the electromagnetic forces required for both levitation and precise object manipulation within the three-dimensional workspace of the Maglev-Pentabot.

Two distinct deep reinforcement learning algorithms, Proximal Policy Optimization (PPO) and Soft Actor-Critic (SAC), were implemented to address varying dimensional control challenges within the Maglev-Pentabot system. PPO was specifically optimized for the two-dimensional plane, leveraging its efficiency in lower-dimensional action spaces. Conversely, SAC was employed for the more complex three-dimensional control tasks, utilizing an off-policy approach and entropy maximization to improve exploration and robustness in higher-dimensional spaces. This algorithmic differentiation allowed for targeted optimization and effective control across both 2D and 3D manipulation scenarios.

Soft Actor-Critic (SAC) enhances training efficiency through the implementation of Experience Replay. This technique stores the agent’s experiences – consisting of states, actions, rewards, and next states – in a replay buffer. During training, SAC samples mini-batches from this buffer, effectively breaking the temporal correlation of sequential data and allowing the agent to learn from past experiences multiple times. This significantly improves sample efficiency compared to on-policy methods, as it reduces the variance of the updates and accelerates the learning process by maximizing data reuse. The replay buffer is typically implemented as a fixed-size circular queue, where new experiences overwrite the oldest ones, maintaining a consistent dataset for learning.

Experimental results indicate the Deep Reinforcement Learning (DRL) control system achieved a maximum levitation speed of 96 mm/s within the Maglev-Pentabot system. This performance represents a substantial improvement over previously published work in the field; the achieved speed is approximately 50 times greater than that reported in existing literature. This significant increase in levitation speed directly validates the efficacy of the implemented DRL approach for precise and rapid manipulation of the Maglev-Pentabot platform.

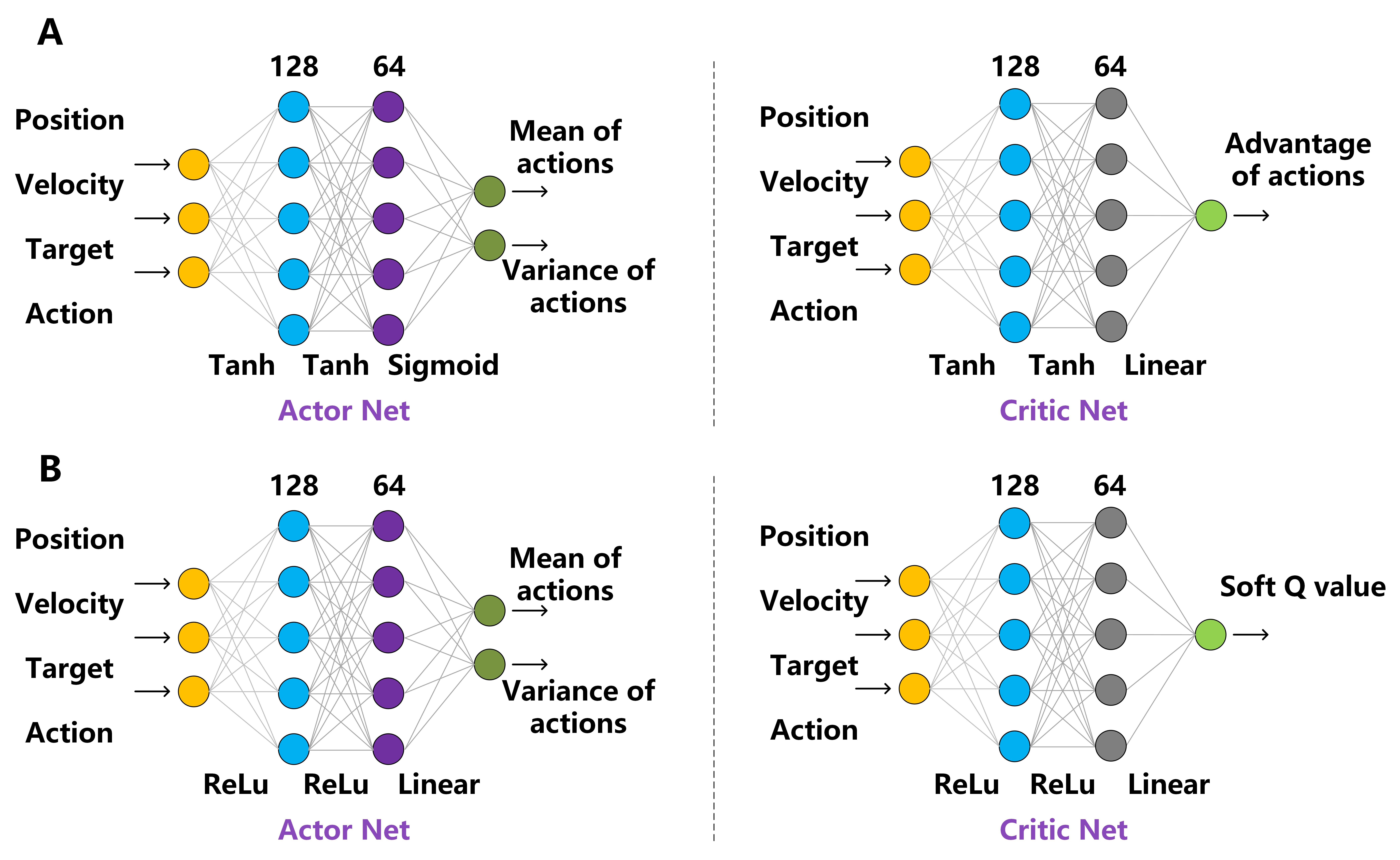

Proximal Policy Optimization (PPO) and Soft Actor-Critic (SAC) represent two distinct network architectures commonly employed in Deep Reinforcement Learning agents.
Proximal Policy Optimization (PPO) and Soft Actor-Critic (SAC) represent two distinct network architectures commonly employed in Deep Reinforcement Learning agents.

Overcoming Non-Linearities: Action Remapping for Precise Control

The Maglev-Pentabot system’s control presents unique challenges due to the fundamentally non-linear nature of magnetic fields. Unlike systems governed by simple proportional relationships, the force exerted by electromagnets on the levitating platform doesn’t change linearly with current adjustments; small changes in input can yield disproportionately large or small responses, and the relationship is highly dependent on the platform’s position and orientation. This non-linearity complicates the learning process for any control algorithm, as traditional methods struggle to predict the system’s behavior accurately. Consequently, achieving precise and stable manipulation requires overcoming these complexities, demanding control strategies capable of navigating this unpredictable force landscape and accounting for the intricate interplay between magnetic fields and the platform’s dynamics.

Action Remapping proved instrumental in navigating the complexities introduced by the Maglev-Pentabot system’s non-linear magnetic fields. This technique fundamentally alters how control commands translate into physical actions, effectively smoothing out the erratic responses typically encountered when dealing with magnetic levitation. By reconfiguring the action space during Deep Reinforcement Learning (DRL) training, the system could more efficiently explore potential solutions and learn optimal control strategies. This adaptive approach bypassed the limitations imposed by the non-linearities, accelerating the learning process and ultimately leading to a more robust and reliable non-contact manipulation system capable of precise movement even within dynamic conditions.

The implementation of Action Remapping yielded a remarkably precise non-contact manipulation system, as evidenced by a low mean positional error during testing. Specifically, the Maglev-Pentabot demonstrated an average deviation of just 0.05 units in the X-direction and 0.0608 units in the Y-direction from its intended target locations. These values represent a substantial improvement in accuracy, confirming the effectiveness of the approach in mitigating the challenges posed by the system’s inherent non-linearities. This level of precision is critical for applications demanding delicate and accurate manipulation, showcasing the potential of this technology in dynamic and complex environments.

The culmination of this research yields a non-contact manipulation system distinguished by its robustness and adaptability. Through overcoming the challenges posed by non-linear magnetic fields, the Maglev-Pentabot demonstrates reliable performance even within dynamic and unpredictable environments. This capability stems from the system’s capacity to maintain precise positional control – achieving mean errors of only 0.05 and 0.0608 in the X and Y directions, respectively – while operating without physical contact. Consequently, the system is poised for application in scenarios demanding delicate handling, remote operation, or interaction with sensitive materials, offering a significant advancement in non-contact manipulation technologies.

In a 2D levitation control scenario, the actuator successfully tracks multi-target positions with minimal control error, as demonstrated by its trajectory during both blue and orange time intervals.
In a 2D levitation control scenario, the actuator successfully tracks multi-target positions with minimal control error, as demonstrated by its trajectory during both blue and orange time intervals.

The Maglev-Pentabot, as detailed in the study, embodies a holistic approach to robotic control, mirroring the interconnectedness of complex systems. Grace Hopper famously stated, “It’s easier to ask forgiveness than it is to get permission.” This sentiment resonates with the iterative process of deep reinforcement learning utilized in the system’s development. The researchers didn’t attempt to pre-define perfect control, but rather allowed the system to learn through trial and error, adjusting its approach based on feedback-a pragmatic method that prioritizes action and adaptation, even if it necessitates refinement. The macroscopic control achieved demonstrates that robust functionality emerges not from intricate planning, but from a resilient structure capable of handling unexpected interactions.

Beyond Contact: Charting a Course for Magnetic Manipulation

The Maglev-Pentabot represents a necessary, if incremental, step toward truly flexible robotic systems. The demonstrated control, while impressive, addresses only the surface of a far deeper challenge. Current architectures rely heavily on learned policies specific to the levitation dynamics themselves; scaling this approach will inevitably reveal the fragility inherent in any system built on opaque, data-driven control. The true cost of this ‘freedom’ from precise modeling will become apparent as environmental disturbances and object variations increase.

Future work must move beyond merely achieving stable levitation. The critical variable is not how high an object can be suspended, but the complexity of tasks the system can reliably perform. This necessitates a shift in focus from low-level control to high-level reasoning-integrating the manipulation system with perception and planning algorithms. A system that cannot understand why a manipulation failed is destined to repeat the same errors, regardless of the sophistication of the underlying reinforcement learning.

Ultimately, the elegance of such a system will not be evident in its complexity, but in its simplicity. The architecture must strive for minimal dependencies, recognizing that each added layer of abstraction introduces potential failure points. The goal is not to build a system that appears intelligent, but one that embodies an underlying structural robustness – a system where stability emerges not from cleverness, but from a fundamental understanding of the forces at play.
