Feeling Its Way In: A Soft Robot Learns to Manipulate with Touch

by

Author: Denis Avetisyan

Researchers have developed a new robotic system that leverages tactile sensing and a novel neural network architecture to achieve robust and adaptable object insertion.

The TaMeSo-bot system leverages a tactile memory, storing encoded demonstrations to enable robust peg-in-hole manipulation by retrieving and matching current sensory input to analogous past experiences, effectively grounding robotic action in a database of learned tactile knowledge.
The TaMeSo-bot system leverages a tactile memory, storing encoded demonstrations to enable robust peg-in-hole manipulation by retrieving and matching current sensory input to analogous past experiences, effectively grounding robotic action in a database of learned tactile knowledge.

The system, TaMeSo-bot, utilizes a masked tactile transformer to learn spatiotemporal representations from multimodal sensor data, enabling successful peg-in-hole insertion.

Robust manipulation in uncertain environments demands effective integration of tactile sensing and learned experience, yet replicating human-like tactile memory remains a significant challenge. This paper introduces ‘Tactile Memory with Soft Robot: Robust Object Insertion via Masked Encoding and Soft Wrist’, presenting TaMeSo-bot, a system that leverages a soft wrist and a novel Masked Tactile Trajectory Transformer ([latex]MAT^3[/latex]) to achieve robust and adaptive object insertion. By jointly modeling spatiotemporal interactions from multimodal sensor data and learning rich representations through masked-token prediction, [latex]MAT^3[/latex] demonstrates superior performance in peg-in-hole tasks. Could this approach pave the way for more versatile and adaptable robotic systems capable of tackling complex, real-world manipulation challenges?

The Inherent Unpredictability of Physical Interaction

Conventional robotic manipulation systems frequently encounter difficulties when interacting with the physical world, largely due to the inherent unpredictability of contact. Unlike the precisely modeled environments of simulation, real-world scenarios present a multitude of variables – surfaces with differing friction, unexpected obstructions, and the ever-present possibility of external disturbances. These factors can dramatically alter the forces exerted on a robot’s end-effector, causing planned trajectories to deviate and potentially leading to failure. The rigidity of many traditional control schemes, designed for predictable conditions, often proves insufficient to cope with this variability, resulting in dropped objects, stalled movements, or even damage to the robot or its surroundings. Consequently, achieving reliable manipulation necessitates developing systems that can actively sense, adapt to, and recover from these unforeseen disturbances – a significant challenge in the field of robotics.

Truly robust robotic manipulation transcends pre-programmed sequences, demanding systems that dynamically respond to the inherent unpredictability of physical interaction. These advanced systems must integrate real-time sensing – encompassing tactile feedback, visual data, and force measurements – with adaptive control algorithms. Rather than rigidly adhering to a plan, a robust manipulator anticipates and compensates for disturbances, such as unexpected object slippage or external forces. Error recovery isn’t simply about halting upon failure; it involves intelligent replanning and the capacity to modify grasps or trajectories mid-action. This requires not only sophisticated hardware, including compliant actuators and sensitive sensors, but also the implementation of learning-based approaches, allowing the robot to refine its manipulation strategies through experience and improve performance over time, ultimately enabling reliable operation in complex and dynamic environments.

The TaMeSo-bot leverages softness and tactile memory to both safely learn from demonstrations and flexibly adapt to novel situations.
The TaMeSo-bot leverages softness and tactile memory to both safely learn from demonstrations and flexibly adapt to novel situations.

Tactile Memory: Encoding Experience for Adaptive Control

Effective robotic manipulation necessitates anticipating and responding to contact forces, and this is significantly improved by leveraging data from past tactile interactions. Robots equipped with the ability to recall previous encounters with objects – including force magnitudes, surface textures, and spatial relationships – can predict likely contact outcomes in new situations. This predictive capability allows for the pre-emptive adjustment of grasping and manipulation strategies, minimizing the risk of slippage, damage, or instability. By building a history of tactile experiences, robots move beyond solely reactive responses to external forces, enabling more robust and adaptable performance in dynamic and unstructured environments. The system allows for identification of patterns in contact, contributing to more efficient and reliable grasping and manipulation.

A Tactile Memory system functions by archiving data from past tactile encounters, including sensor readings related to force, texture, and shape, alongside associated action parameters and outcomes. This stored information is then indexed and retrieved based on similarities between current and previously experienced tactile events. The system utilizes this recalled data to predict the likely consequences of ongoing interactions, enabling the robot to adapt its behavior even when faced with novel objects or situations. Generalization is achieved through the use of abstraction and feature-based representations, allowing the system to recognize patterns across variations in object size, orientation, and material properties, rather than relying on exact matches to previously stored data.

Traditional robotic manipulation often relies on reactive control, where actions are determined solely by current sensory input. In contrast, implementing a tactile memory enables proactive manipulation strategies by allowing the robot to anticipate contact outcomes based on previously experienced interactions. This shifts control from responding to forces to predicting and preparing for them. By recalling successful manipulation parameters – such as grip force, approach angle, or object compliance – from similar past scenarios, the robot can preemptively adjust its actions, improving stability, reducing the risk of slippage, and enabling more complex and delicate object handling beyond what is achievable with purely reactive systems.

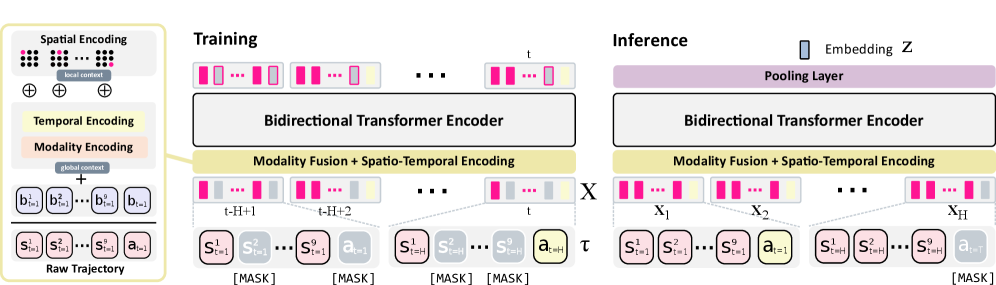

The Masked Tactile Trajectory Transformer ([latex]MAT3^{\text{3}}[/latex]) encodes distributed tactile data-integrating auxiliary and spatiotemporal information-into a representative embedding that captures the dynamics of tactile-action sequences by reconstructing states and actions within a time window during training with random masking.
The Masked Tactile Trajectory Transformer ([latex]MAT3^{\text{3}}[/latex]) encodes distributed tactile data-integrating auxiliary and spatiotemporal information-into a representative embedding that captures the dynamics of tactile-action sequences by reconstructing states and actions within a time window during training with random masking.

Efficient Action Retrieval via Hierarchical Navigable Small World Graphs

Efficiently retrieving relevant past experiences from extensive datasets is computationally challenging due to the high dimensionality and volume of data. Linear search methods become impractical as the database scales, exhibiting time complexity proportional to the number of stored experiences. Approximate Nearest Neighbor (ANN) search algorithms address this limitation by prioritizing speed over absolute precision, identifying candidates likely to be the closest matches without exhaustively comparing every data point. The performance of these algorithms is typically evaluated using metrics such as recall@K (the proportion of true nearest neighbors found within the top K results) and query time, both critical factors in real-time applications requiring rapid response. Selecting an appropriate ANN algorithm and optimizing its parameters are therefore essential for maintaining system responsiveness and ensuring the retrieval of sufficiently relevant past experiences.

An Action Retrieval system leverages Hierarchical Navigable Small World (HNSW) graphs to facilitate fast approximate nearest neighbor search within a database of previously performed actions. HNSW graphs construct a multi-layer graph where each layer is a progressively smaller subset of the data, connected by shortcut edges. This hierarchical structure enables the search algorithm to rapidly navigate towards potential nearest neighbors, bypassing a large portion of the database. Rather than exhaustively comparing the current state to every stored action, the system efficiently traverses the graph, identifying candidate actions based on proximity in the feature space. This approximate search provides substantial performance gains compared to exact nearest neighbor methods, particularly with high-dimensional data, while maintaining a high degree of accuracy for action selection.

Offline demonstration data consists of pre-recorded experiences, typically gathered through human or simulated agent interaction with the environment. This data is then used to construct a database of successful actions and associated state observations. The richness of this dataset is crucial; a larger and more diverse collection of demonstrations allows the action retrieval system to generalize effectively to novel situations. Specifically, each demonstration includes a record of the agent’s state – the observed environmental conditions – and the corresponding action taken, forming paired data points used to build the HNSW graph. The quality of these demonstrations directly impacts the performance of the retrieval system, as it learns to associate specific states with effective actions based on this pre-existing data.

The integration of an HNSW graph-based action retrieval system with a database of offline demonstration data allows for the swift identification of previously successful actions when presented with novel situations. Performance evaluations, specifically utilizing a peg manipulation task with previously unseen peg configurations, indicate an 85% success rate in retrieving and applying effective actions. This metric demonstrates the system’s ability to generalize learned behaviors to new, similar scenarios and suggests a high degree of effectiveness in action selection based on similarity to past experiences.

A t-SNE visualization reveals that the learned embedding space effectively organizes video frames based on their similarity to representative query points for each of the fit, align, and insert subtasks, as indicated by color-coded L2 distances.
A t-SNE visualization reveals that the learned embedding space effectively organizes video frames based on their similarity to representative query points for each of the fit, align, and insert subtasks, as indicated by color-coded L2 distances.

TaMeSo-bot: Embodied Intelligence Through Tactile Memory and Soft Robotics

The TaMeSo-bot represents a departure from traditional robotic manipulation through the synergistic combination of tactile memory and soft robotics. This innovative system doesn’t simply react to touch; it remembers tactile experiences, enabling it to adapt to variations in object shape, pose, and material properties. By leveraging soft, compliant actuators – mimicking the dexterity of biological systems – alongside a memory system that stores and retrieves past tactile interactions, the robot achieves a level of robustness previously unattainable. This integration allows TaMeSo-bot to perform complex manipulation tasks, such as inserting pegs into holes, with significantly increased success rates and smoother, more natural movements, effectively bridging the gap between rigid, pre-programmed robotic actions and the nuanced adaptability of human touch.

The TaMeSo-bot demonstrates a substantial advancement in robotic manipulation, particularly evident in its performance with the challenging ‘Peg-in-Hole Insertion’ task. Through the integration of tactile memory and soft robotics, the system achieves an impressive 85% success rate when presented with entirely novel peg shapes – a significant improvement over existing robotic solutions. Furthermore, its ability to accurately insert previously encountered pegs reaches 88.8%, showcasing not only adaptability to the unknown but also consistent performance with familiar objects. This high degree of success suggests the potential for robots to perform complex assembly and manipulation tasks with greater reliability and reduced need for human intervention, paving the way for automation in a wider range of industries.

The efficacy of the TaMeSo-bot’s tactile memory hinges on understanding the complex data it processes, and visualization techniques like t-distributed stochastic neighbor embedding (t-SNE) provide a crucial window into this ‘memory’. By reducing the high-dimensional tactile data into a two or three-dimensional space, t-SNE allows researchers to observe how the robot categorizes and distinguishes between different object features and contact states. These visual representations aren’t merely for inspection; they actively inform refinement of the tactile memory system, enabling targeted adjustments to improve the robot’s ability to generalize to novel objects and situations. Clusters forming in the t-SNE space reveal learned similarities, while outliers highlight areas where the robot struggles, guiding further training and optimization of the manipulation strategy. This iterative process of visualization and refinement is key to building a robust and adaptable robotic manipulation system.

The TaMeSo-bot signifies a step forward in robotic dexterity, showcasing the potential for systems that reliably address complex manipulation challenges. Unlike traditional robots prone to jerky or imprecise movements, this system achieves smoother actions-demonstrated by significantly smaller adjustments made between each incremental step-leading to more consistent success rates in tasks like peg-in-hole insertion. This improvement isn’t merely about accomplishing a task, but about how it’s accomplished, suggesting a capacity for greater adaptability in unpredictable environments and with novel objects. The system’s performance indicates a shift towards robots capable of learning from tactile feedback and refining their approach, ultimately enhancing their robustness and opening avenues for application in delicate or demanding scenarios.

The presented work on TaMeSo-bot and its masked tactile transformer (MAT3³) embodies a dedication to provable robotic intelligence. The system’s reliance on learning spatiotemporal representations from multimodal sensor data isn’t merely about achieving successful peg-in-hole insertion; it’s about constructing a robust, logically sound understanding of the physical world. As Robert Tarjan once stated, “Algorithms must be correct, not just work.” This principle directly informs the design choices within the research, prioritizing a system grounded in demonstrable, mathematical principles over purely empirical solutions. The emphasis on masked encoding ensures the robot doesn’t simply memorize insertion sequences, but develops a generalized ability to adapt to varying conditions, a testament to the pursuit of algorithmic correctness.

Beyond the Peg: Charting a Course for Tactile Intelligence

The demonstrated success of TaMeSo-bot, while a functional step, merely highlights the chasm separating current robotic manipulation from true dexterity. The reliance on a specific task – peg-in-hole – reveals an inherent limitation. The core challenge isn’t merely ‘insertion,’ but the construction of a generalized, provable framework for interacting with any object. The masked transformer, for all its computational elegance, remains a correlative engine, not a deductive one. It learns how to insert, not why insertion succeeds, leaving the system vulnerable to novel geometries or unexpected disturbances.

Future work must prioritize the development of symbolic representations grounded in tactile data. The spatiotemporal representations, while useful, lack the inherent logical structure necessary for robust reasoning. The field needs to move beyond passively observing sensor data and towards actively querying the environment – formulating hypotheses about object properties and testing them through controlled interaction. Only then can a robotic system demonstrate genuine understanding, rather than sophisticated mimicry.

Ultimately, the pursuit of tactile intelligence demands a shift in focus. The emphasis should not be on increasing the complexity of algorithms, but on achieving a greater degree of mathematical purity. A truly elegant solution will not be judged by its performance on benchmark tasks, but by the logical completeness and non-contradiction of its underlying principles.

Original article: https://arxiv.org/pdf/2601.19275.pdf
